| Essential Information | |
|---|---|
| Product Name | LORI Manual Bed |
| Model Number | JDC-SO171A1/ JDC-SO171B1 |
| Dimensions | L2250xW1065xH470-680mm |
| Function | Three Functions |
| Material | Cold Rolled Steel, HDPE |
| Product Introduction | |
|---|---|
 |
|

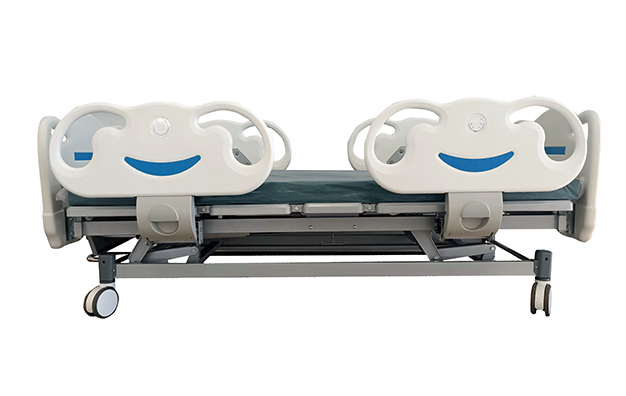

| Product Display | |
|---|---|
 |
|
| Product Detail Display | |
|---|---|
 |
|
| Product Material | |
|---|---|
| 1. Bed platform, structure and leg are all made of premium cold rolled steel with electrostatic powder coating. | |
| 2. The Bed platform consist of four foldable sections, stamping frame. | |
| 3. Detachable ‘Smile face’ HDPE bed headboard and footboard. | |
| 4. Four-section ‘Smile face’ HDPE side rails operated by gas spring. |
| Product Parameters | |
|---|---|
| Product Name | LORI Manual Bed |
| Material | Cold Rolled Steel, HDPE |
| Brand | JDMED |
| Model | JDC-SO171A1/ JDC-SO171B1 |
| Dimensions | L2250*W1065*H470-680±10mm |
| Bed Platform | 1980x900mm |
| Backrest | 0-75°±5° |
| Legrest | 0-45°±5 |
| Height Adjustment | 470-680±10mm |
| Brakes System | Central Brake/ Wheels Brake |
| Sticker Color | Wood Grain/ Royal Blue |
| Side Rails | ABS Side Rails |
| Product Feature | |
|---|---|
| 1. Backrest adjustment 0-75°±5°; Legrest adjustment 0-45°±5°; Height adjustment: 470-680±10mm. | |
| 2. Angle indicators on backrest side rails. | |
| 3. Clear acrylic head card for patient name display, Four infusion holes, four drainage hooks around the bed. | |
| 4. Mechanical crank operation with overload protection. | |
| 5. The screw handle is foldable under the bed footboard. | |
| 6. Four 125mm diameter castors with central brake. | |
| 7. The four corners of the bed body have orthopedic traction frame holes, which can be used for the clinical use of orthopedics when needed (Optional). | |
| 8. The detachable bassinet is specially design for taking care of newborn baby, with 360°visibility (Optional). |
| Optional accessories and function list | |
|---|---|
 |
|
| Product Application | |
|---|---|
| Because of the excellent quality and service, our hospital beds are widely used in the hospital of different countries like the U.K, France, Germany, South Africa, Middle East, Chile, Japan, Australia, Korea, etc. |
| Reference Photos | |
|---|---|
 |
| Packaging&shipping | |
|---|---|
 |
